Basic Info.
Model NO.
JIS 1169
Application
Machinery, Chemical Industry, Environmental, Building, Marine, Mold
Finish
Polishing
Materials
Stainless Steel 316
Surface
Polished
Transport Package
Carton+Pallet
Specification
M6-M64
Trademark
SCE
Origin
Qingdao, China
HS Code
7326909
Production Capacity
40000000000/Year
Product Description

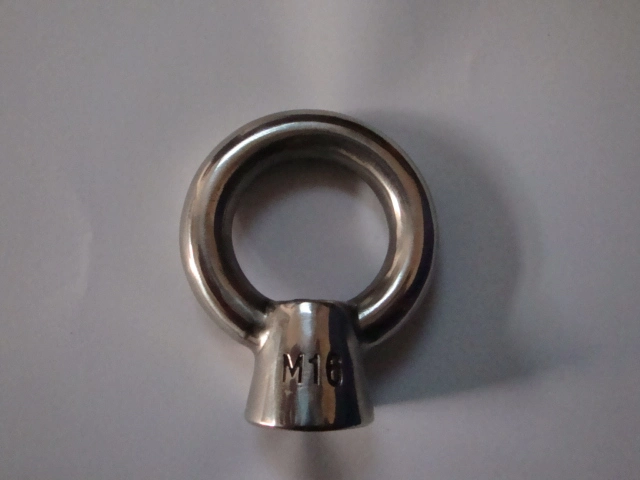

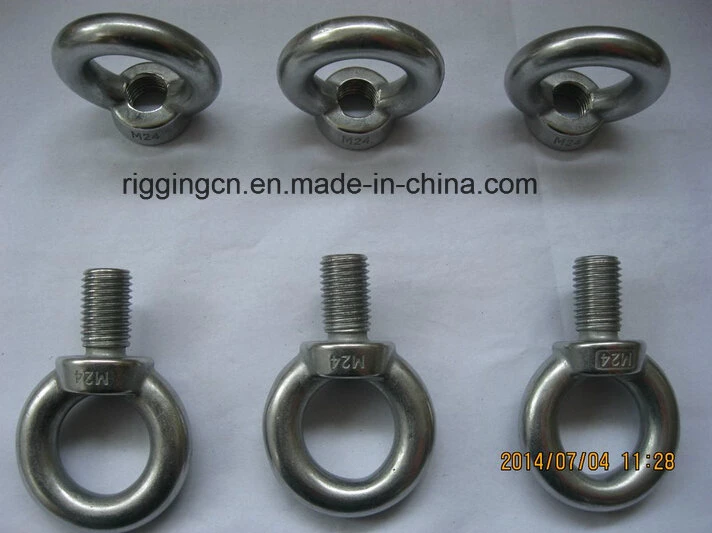

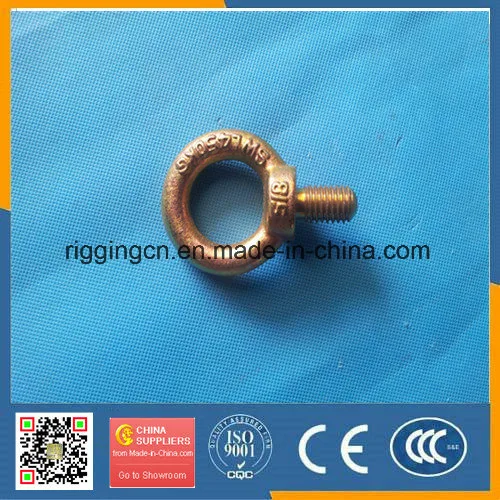

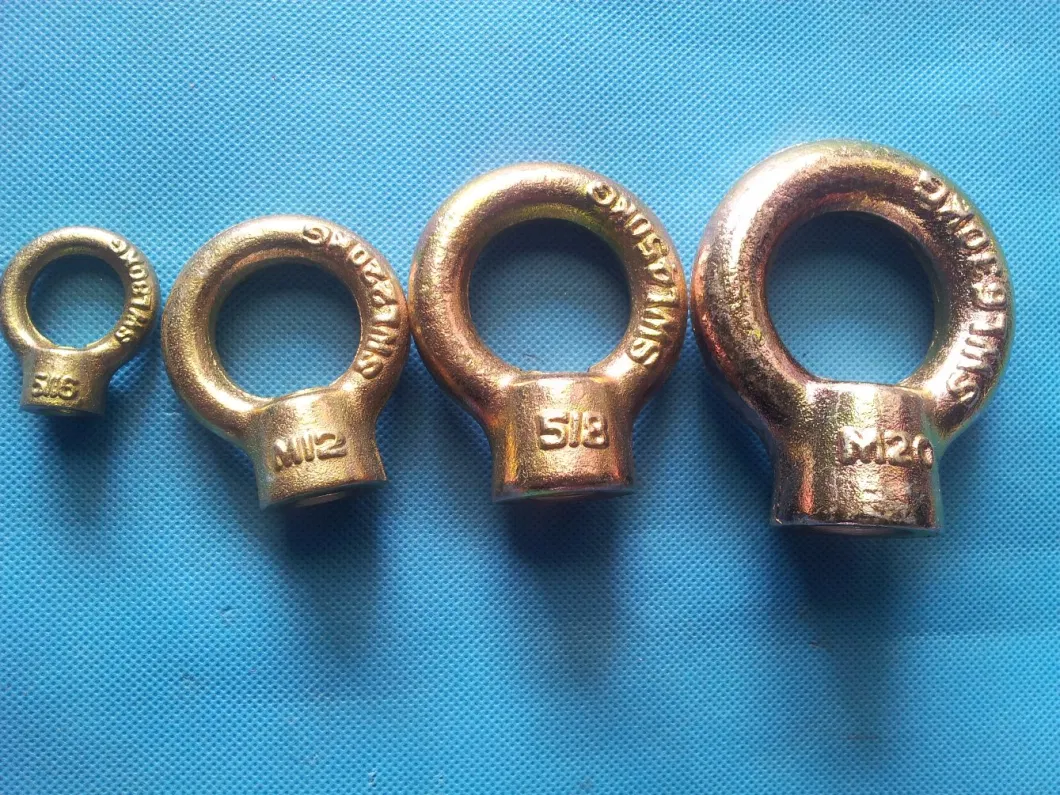

C15 Forged Galvanized Steel Din580 Lifting Eye Bolts
Product Description Size: M6, M8, M10, M12, M14,M16, M20, M24,M27, M30, M33,M36, M42,M45, M48, M56, M64, M72 M80 ,M100
Product Show

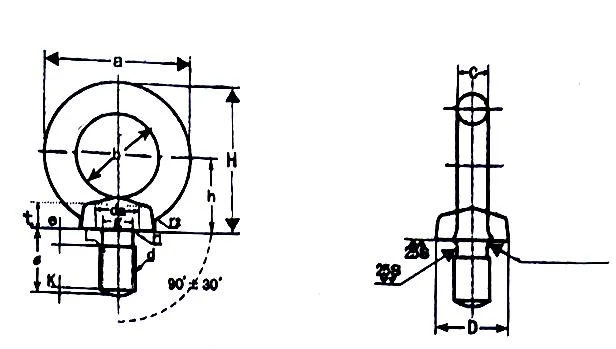

| SIZE | a | b | C | D | t | h | H | l | e | g | r1 | da | r2 | k | sWL | ||
| (d) | (cankao) | (min) | (min) | (max) | (yue) | (yue) | kg | kN | (kg) | ||||||||
| M5 | 26 | 16 | 5 | 13 | 4.9 | 13.5 | 26.5 | 12.5 | 3 | 3.9 | 0.8 | 7.1 | 2 | 1 | 40 | 0.392 | 0.014 |
| M6 | 26 | 16 | 5 | 13 | 4.9 | 13.5 | 26.5 | 12.5 | 3 | 4.5 | 0.8 | 7.1 | 2 | 1 | 60 | 0.588 | 0.015 |
| M8 | 32.6 | 20 | 6.3 | 16 | 5 | 17 | 33.3 | 15 | 3 | 6 | 1 | 9.2 | 4 | 1.2 | 80 | 0.785 | 0.03 |
| M10 | 41 | 25 | 8 | 20 | 7 | 21 | 41.5 | 18 | 4 | 7.7 | 1.2 | 11.2 | 4 | 1.5 | 150 | 147 | 0.06 |
| M12 | 50 | 30 | 10 | 25 | 9 | 26 | 51 | 22 | 5 | 9.4 | 1.4 | 14.2 | 6 | 2 | 220 | 2.16 | 0.12 |
| M14 | 60 | 35 | 12.5 | 30 | 11 | 30 | 60 | 27 | 5 | 11.1 | 1.5 | 16.2 | 6 | 2 | 330 | 3.23 | 0.2 |
| M16 | 60 | 35 | 12.5 | 30 | 11 | 30 | 60 | 27 | 5 | 13 | 1.6 | 18.2 | 6 | 2 | 450 | 4.41 | 0.22 |
| M18 | 72 | 40 | 16 | 35 | 13 | 35 | 71 | 30 | 6 | 14.4 | 2 | 20.2 | 8 | 2.5 | 540 | 529 | 0.37 |
| M20 | 72 | 40 | 16 | 35 | 13 | 35 | 71 | 30 | 6 | 16.4 | 2 | 22.4 | 8 | 2.5 | 630 | 6.18 | 0.4 |
| M22 | 81 | 45 | 18 | 40 | 15 | 40 | 80.5 | 35 | 7 | 18.3 | 2.3 | 24.4 | 10 | 2.5 | 790 | 7.74 | 0.57 |
| M24 | 90 | 50 | 20 | 45 | 18 | 45 | 90 | 38 | 8 | 19.6 | 2.5 | 26.4 | 12 | 3 | 950 | 9.32 | 0.8 |
| M27 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 | 8 | 22.6 | 2.5 | 29.4 | 15 | 3 | 1.200 | 11.7 | 1.5 |
| M30 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 | 8 | 25 | 3 | 33.4 | 15 | 3.5 | 1.500 | 14.7 | 1.54 |
| M33 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 | 8 | 27.3 | 3 | 36.4 | 15 | 4 | 1.900 | 18.6 | 1.59 |
| M36 | 133 | 70 | 31.5 | 70 | 26 | 65 | 131.5 | 55 | 10 | 30.3 | 3 | 39.4 | 18 | 4 | 2.300 | 22.6 | 2.83 |
| M39 | 133 | 70 | 31.5 | 70 | 26 | 65 | 131.5 | 55 | 10 | 33 | 3.5 | 43 | 18 | 4 | 2.850 | 27.9 | 2.9 |
| M42 | 151 | 80 | 35.5 | 80 | 30 | 75 | 150.5 | 65 | 12 | 35.6 | 3.5 | 45.6 | 20 | 4.5 | 3.400 | 33.3 | 4.1 |
| M45 | 151 | 80 | 35.5 | 80 | 30 | 75 | 150.5 | 65 | 12 | 38 | 3.5 | 49 | 20 | 4.5 | 3.950 | 38.7 | 4.34 |
| M48 | 170 | 90 | 40 | 90 | 35 | 85 | 170 | 70 | 12 | 41 | 4 | 52.6 | 22 | 5 | 4,500 | 44.1 | 5.88 |
| M52 | 170 | 90 | 40 | 90 | 35 | 85 | 170 | 70 | 12 | 44.9 | 4 | 56.8 | 22 | 5 | 5.600 | 54.9 | 6.16 |
| M56 | 210 | 110 | 50 | 110 | 42 | 105 | 210 | 80 | 14 | 48.3 | 4.5 | 61 | 25 | 5 | 6.750 | 66.2 | 10.85 |
| M64 | 210 | 110 | 50 | 110 | 42 | 105 | 210 | 90 | 14 | 55.7 | 5 | 0.71 | 25 | 6 | 9.000 | 88.3 | 11.6 |
| M80x6 | 266 | 140 | 63 | 130 | 50 | 130 | 263 | 105 | 14 | 71 | ·5 | 87 | 35 | 6 | 15.000 | 147 | 21.5 |
| M90x6 | 340 | 180 | 80 | 170 | 60 | 165 | 335 | 130 | 14 | 81 | 5 | 97 | 35 | 6 | 18.000 | 177 | 44 |
| M100x6 | 340 | 180 | 80 | 170 | 60 | 165 | 335 | 130 | 14 | 91 | 5 | 108 | 40 | 6 | 20.000 | 196 | 46.5 |
1. How do we control quality?
a) Pay attention to adaptation for manufacture process
b) Approval report for shipment
c) Third party inspection is accepted
d) Keeping quality guarantee for a long period
e) Guaranteeing quality inspection of each product before assembly and packing.
f) Comply with ISO 9001
2. Are we a factory or a trading company?
We are a factory manufacturing .Our products mainly consist of: forged riggings, hoisting pulley block, clevis hooks, eye hooks, safety hooks, swivel hooks, shackles and so on. With the passed 10 years of hard work and pursuit of better quality.
3. What are our advantages over others?
a) QINGDAO SINCERE METAL PRODUCTS COMPANY could make the clients' ideas to be actual products with support from related engineers from different fields.
b) Producing and designing forging, casting and stamping parts has made our company in a strong position in the OEM and ODM market.
c) QINGDAO SINCERE METAL PRODUCTS COMPANYbusiness is to help the overseas clients to get high quality products with fair price in China.
d) Any request from the clients would be treated carefully by our experienced staff, the quality of any order would be highly controlled by our skilled engineers.
e) QINGDAO SINCERE METAL PRODUCTS COMPANY teams would like to welcome clients from home and abroad to work for the win-win situation and reach our target: Making Business More Fun!
