Basic Info.
Model NO.
DIN741
Technics
Welding
Type
Tension Clamp
Surface Finishing
Elec Galvinized
Threads
Metric
Packing
PP Bags/ Cartons+Plywooden Pallets
Deilivery Time
15-25days
Applications
Used on Wire Rope Eye-Loop Connections
Transport Package
Ppbags/Cartons+Plywood Pallets
Specification
3mm-45mm
Trademark
SCE
Origin
Qingdao, China
HS Code
732690
Production Capacity
500000PCS/Month
Product Description

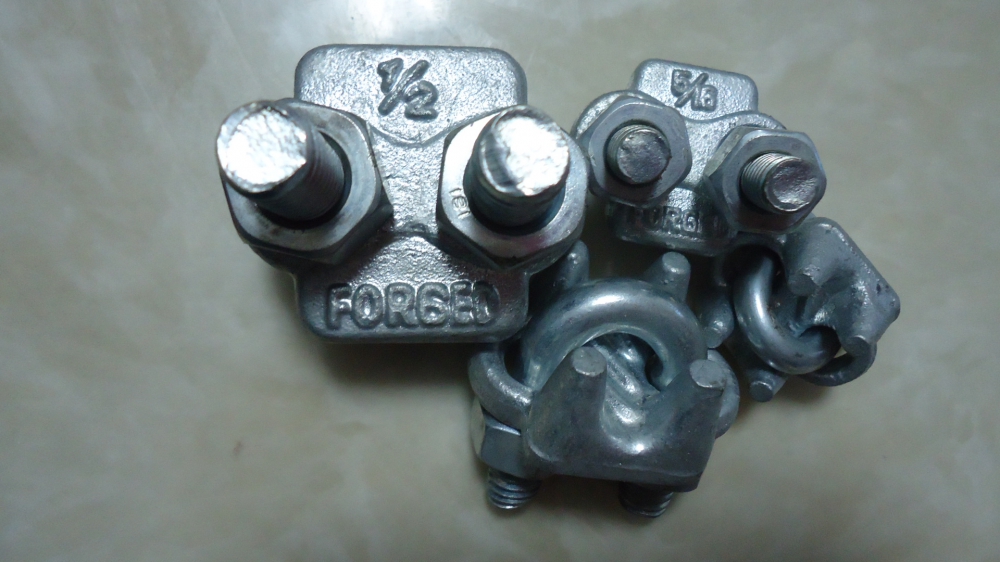

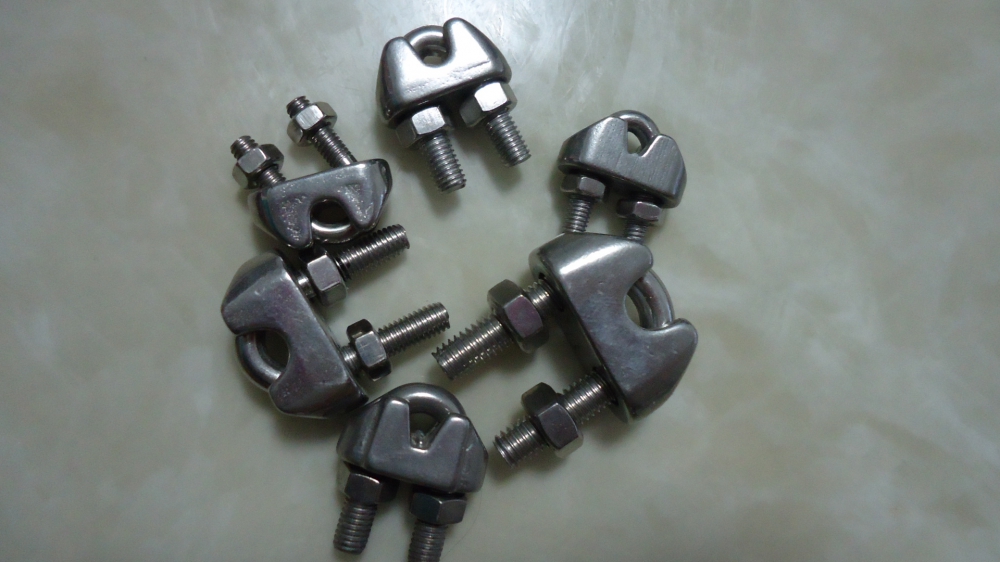

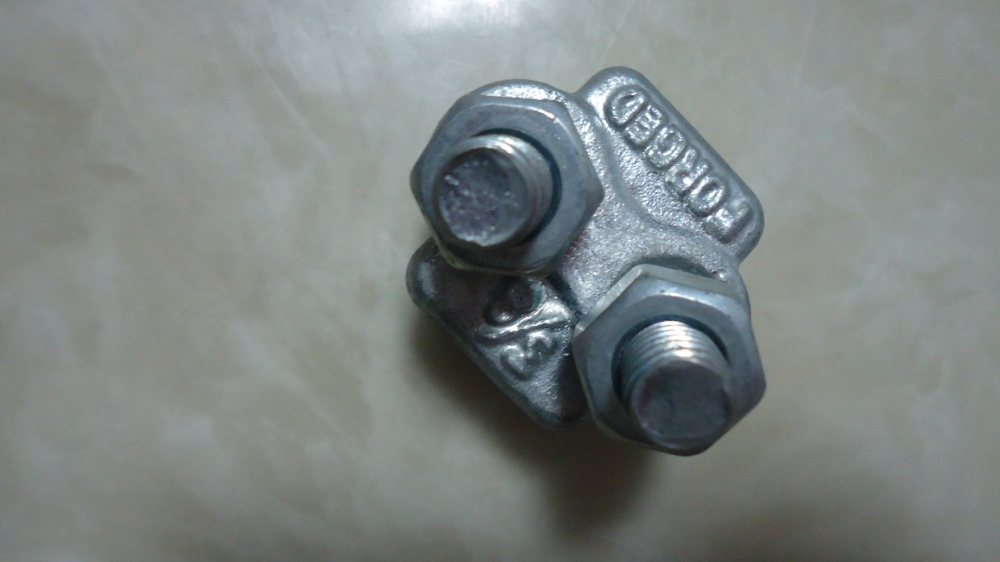

Specification of DIN741 Wire Rope Clip
SIZE | A | B | C | D | E | F | G |
M3 | 9 | 10 | 12 | 4 | 10 | 21 | 16 |
M5 | 11 | 11 | 13 | 5 | 10 | 23 | 19 |
M6 | 13 | 12 | 15 | 5 | 11 | 26 | 23 |
M8 | 16 | 14 | 19 | 6 | 15 | 30 | 28 |
M10 | 19 | 18 | 22 | 8 | 17 | 34 | 34 |
M11 | 20 | 19 | 22 | 8 | 18 | 36 | 36 |
M13 | 24 | 23 | 30 | 10 | 21 | 40 | 45 |
M14 | 25 | 23 | 30 | 10 | 22 | 44 | 47 |
M16 | 29 | 26 | 33 | 12 | 26 | 50 | 51 |
M19 | 32 | 29 | 38 | 12 | 30 | 54 | 63 |
M22 | 37 | 33 | 44 | 14 | 34 | 61 | 71 |
M26 | 41 | 35 | 45 | 14 | 37 | 65 | 81 |
M30 | 46 | 37 | 50 | 16 | 43 | 74 | 94 |
M34 | 52 | 42 | 55 | 16 | 50 | 80 | 104 |
M40 | 58 | 45 | 60 | 16 | 55 | 88 | 124 |
Instructions for use
Wire rope clips should be inspected before use to ensure that:
• all markings are legible;
• a wire rope clip with the correct dimensions has been selected;
• the nuts or any other locking system cannot vibrate out of position;
• the wire rope clip is free from nicks, gouges and cracks;

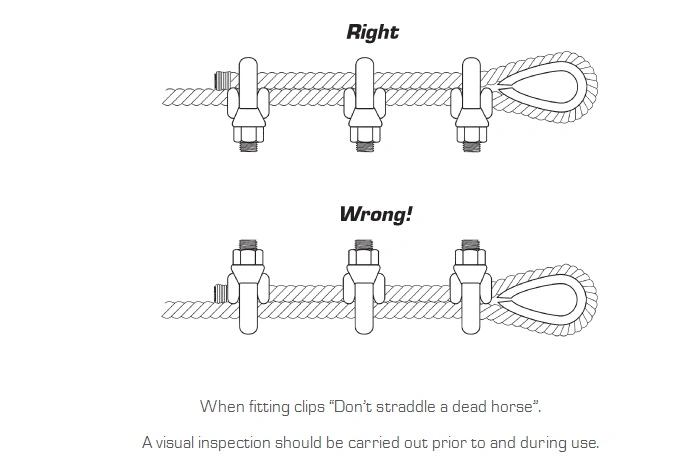

• never modify, repair or reshape a wire rope clip by machining, welding, heating or bending as this may affect their performance. The wire rope clip should be fitted to the wire rope as shown in below figures. The bridge of the wire rope clip should always be placed on the load bearing part of the rope. The U-bolt of the clip should be placed on the rope tail, also known as the dead end of the rope. Turn back enough wire rope length so that the required minimum number of clips can be installed according to the instructions below. The first clip must be placed one bridge width from the turned-back rope tail or dead end of the rope, according to figure 1. Tighten the nuts to the specified torque.
Safty:
