Basic Info.
Model NO.
wire rope clip
Type
Tension Clamp
Technics
Casting
Materials
Stainless Steel 304, or 316
Surface
HDG/Galvanized
Delivery Time
30days
MOQ
100
Quality
Good
Transport Package
Ppbags/Cartons+Plywood Pallets
Specification
1/8"-1"
Trademark
SCE
Origin
Qingdao, China
HS Code
732690
Production Capacity
50000PCS/Month
Product Description

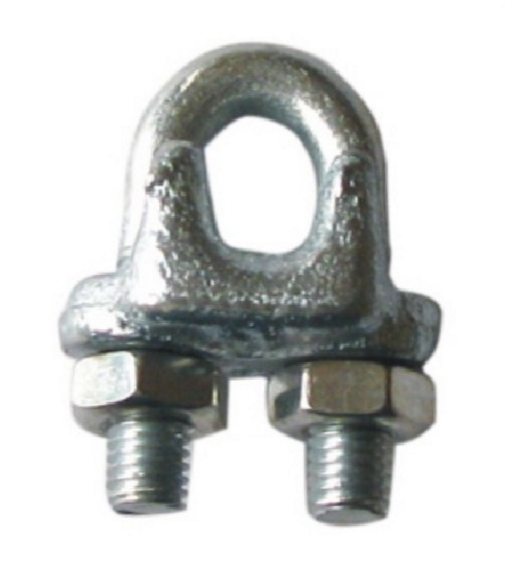

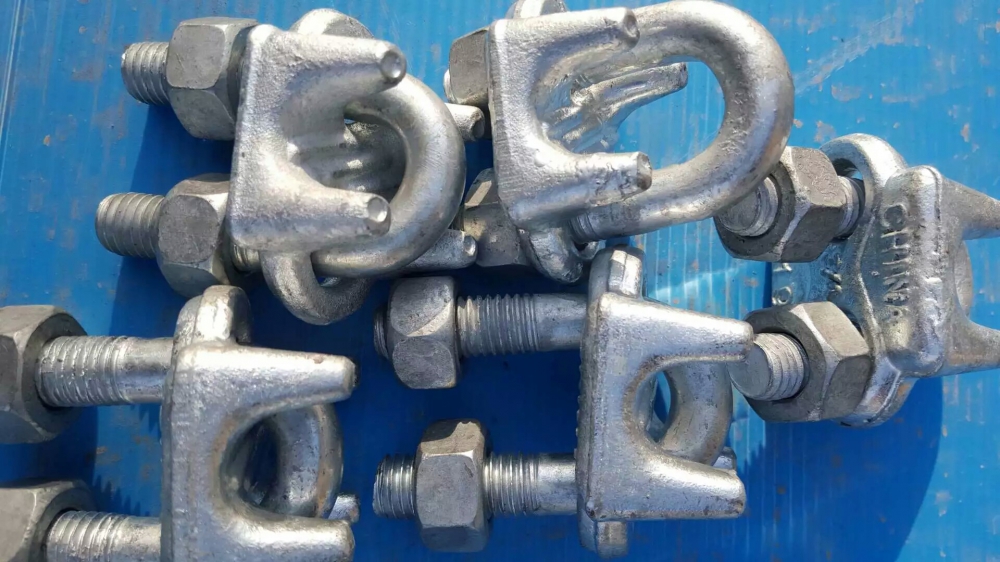

JIS Type Wire Rope Clip for Wire Fixing

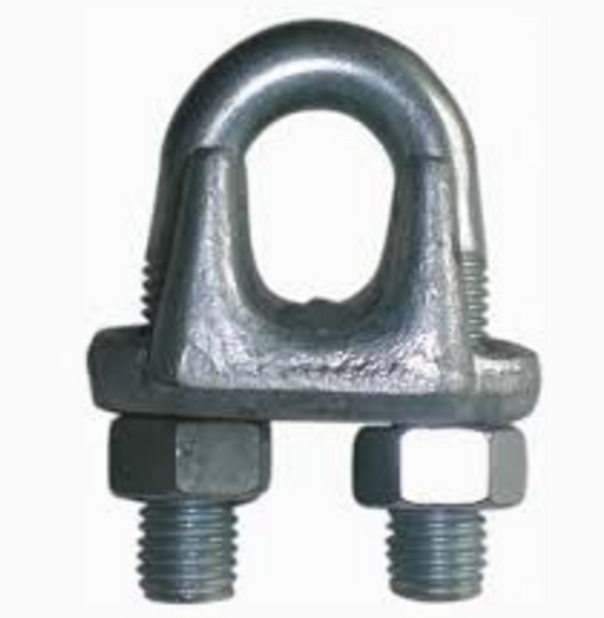

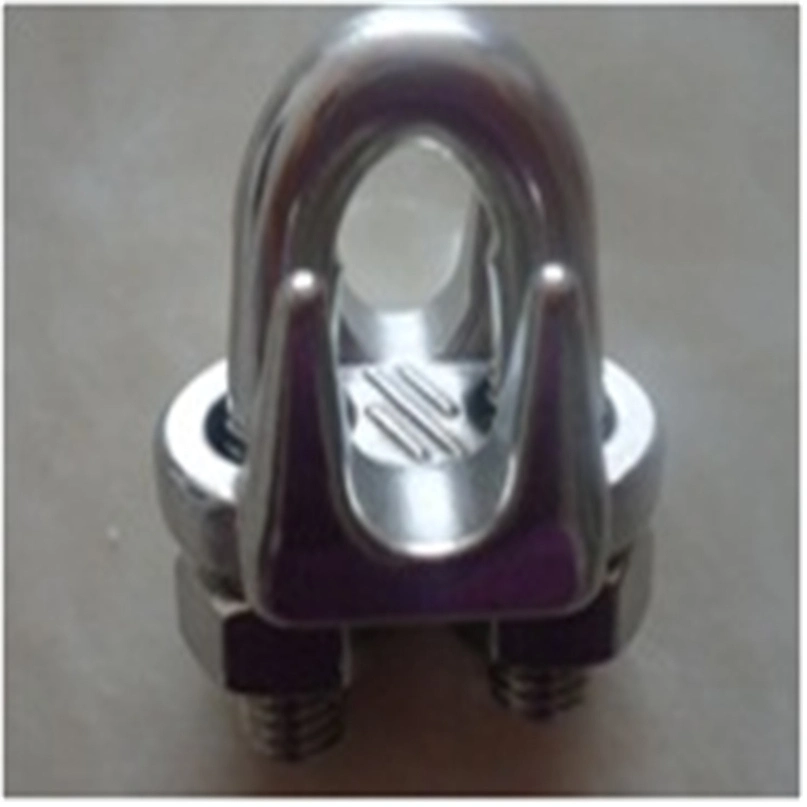

Stainless Steel Forged JIs Wire Rope Clip
| SIZE | B | C | E | G | H | L | S | Thread |
| 2 | 4.5 | 14 | 13 | 7 | 3 | 19 | 10 | 3 |
| 3 | 4.5 | 16 | 14 | 8 | 3.5 | 22 | 13 | 4 |
| 4 | 5 | 18 | 16 | 10 | 3.5 | 26 | 14 | 4 |
| 5 | 6 | 25 | 20 | 12 | 4 | 30 | 18 | 5 |
| 6 | 6 | 29 | 24 | 14 | 5 | 35 | 20 | 6 |
| 8 | 6 | 36 | 31 | 18 | 6.5 | 40 | 20 | 8 |
| 10 | 7 | 45 | 35 | 22 | 8 | 50 | 28 | 10 |
| 12 | 8 | 51 | 39 | 26 | 10 | 60 | 35 | 12 |
| 14 | 9 | 53 | 45 | 28 | 10 | 65 | 40 | 12 |
| 16 | 10 | 60 | 48 | 32 | 11 | 75 | 45 | 14 |
| 18 | 11 | 62 | 53 | 34 | 11 | 80 | 50 | 14 |
| 20/22 | 12 | 78 | 62 | 44 | 15 | 100 | 60 | 18 |
| 24/25 | 13 | 86 | 68 | 48 | 16 | 110 | 65 | 20 |
| 26/28 | 14 | 94 | 75 | 54 | 18 | 120 | 70 | 22 |
| 30/32 | 15 | 98 | 79 | 58 | 18 | 130 | 75 | 22 |
| 33/38 | 16 | 120 | 93 | 70 | 22 | 150 | 85 | 27 |
| 40/45 | 19 | 136 | 100 | 80 | 24 | 175 | 95 | 30 |
| 47/50 | 21 | 150 | 115 | 89 | 26 | 195 | 100 | 33 |
| 56/60 | 25 | 170 | 128 | 101 | 29 | 240 | 115 | 36 |
| 63/70 | 27 | 190 | 142 | 115 | 31 | 270 | 130 | 39 |
| 73/80 | 29 | 212 | 156 | 127 | 34 | 300 | 150 | 42 |
Can wire rope clips be used for lifting?
There are two types of wire rope clip designs: U-bolt or double saddle. It should be noted that only drop forged U-bold wire rope clips are permitted for overhead lifting, double saddle clips are not
Can wire rope clips be used for lifting?
Why rope clips are used in rope haulage system?
Rope haulage describes the system of moving mine tubs by attaching them to a wire rope that pulls the load throughout the mine. Endless haulage uses a loop of rope and the motion of the tubs continue in a continuous cycle. These clips were developed to make attaching tubs to ropes safe and easier
