Basic Info.
Model NO.
FF-T791B
Standard
Us
Surface Treatment
Polished
Transport Package
PP Bags+Plywood Pallets
Specification
3/4"*6"
Trademark
SCE
Origin
Qingdao, China
HS Code
732690
Production Capacity
50000PCS/Month
Product Description

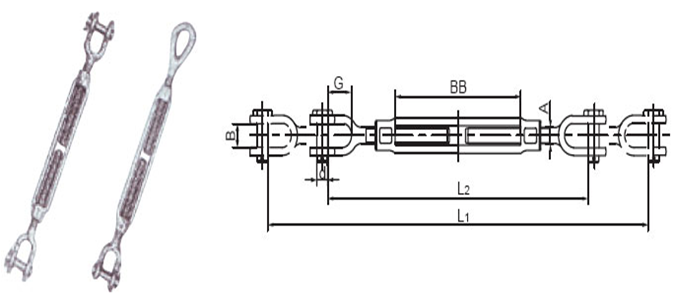

| SIZE(in.) | WLL(t) | WEIGHT(kg/SET) | DIA(mm) | ||||||||
| EYE/EYE | HOOK/HOOK | A | L3 | L4 | R | S | L5 | L6 | D | ||
| 1/4×4 | 0.23 | 0.12 | 0.14 | 6.35 | 229.7 | 198.1 | 19.81 | 8.61 | 282.45 | 180.85 | 11.43 |
| 5/16×4-1/2 | 0.36 | 0.2 | 0.21 | 7.87 | 344.4 | 230.1 | 23.88 | 11.18 | 325.37 | 211.07 | 12.7 |
| 3/8×6 | 0.54 | 0.34 | 0.35 | 9.65 | 443.7 | 291.3 | 28.45 | 13.46 | 419.1 | 266.7 | 14.22 |
| 1/2×6 | 1 | 0.51 | 0.73 | 12.7 | 510 | 332.3 | 36.58 | 18.29 | 478.03 | 300.23 | 16.76 |
| 1/2×9 | 1 | 0.7 | 0.83 | 12.7 | 662.4 | 408.4 | 36.58 | 18.29 | 630.43 | 376.43 | 16.76 |
| 1/2×12 | 1 | 0.97 | 1.03 | 12.7 | 814.8 | 484.6 | 36.58 | 18.29 | 782.83 | 452.63 | 16.76 |
| 5/8×6 | 1.59 | 1.28 | 1.25 | 16 | 557 | 372.9 | 44.45 | 22.35 | 520.7 | 336.55 | 22.28 |
| 5/8×9 | 1.59 | 1.49 | 1.53 | 16 | 709.4 | 449.1 | 44.45 | 22.35 | 673.1 | 412.75 | 22.28 |
| 5/8×12 | 1.59 | 1.55 | 1.59 | 16 | 861.8 | 525.3 | 44.45 | 22.35 | 825.5 | 488.95 | 22.28 |
| 3/4×6 | 2.36 | 1.7 | 1.76 | 19.05 | 606.6 | 416.1 | 53.09 | 25.4 | 568.45 | 377.95 | 24.89 |
| 3/4×9 | 2.36 | 2.09 | 2.39 | 19.05 | 759 | 492.3 | 53.09 | 25.4 | 720.85 | 454.15 | 24.89 |
| 3/4×12 | 2.36 | 2.49 | 2.46 | 19.05 | 911.4 | 568.5 | 53.09 | 25.4 | 873.25 | 530.35 | 24.89 |
| 3/4×18 | 2.36 | 3.26 | 3.68 | 19.05 | 1216.2 | 720.9 | 53.09 | 25.4 | 1178.1 | 682.75 | 24.89 |
| 7/8×12 | 3.27 | 3.27 | 3.67 | 22.35 | 941.6 | 592.3 | 60.45 | 31.75 | 914.4 | 565.15 | 28.7 |
| 7/8×18 | 3.27 | 4.51 | 4.51 | 22.35 | 2008.4 | 744.7 | 60.45 | 31.75 | 1219.2 | 717.55 | 28.7 |
| 1×6 | 4.54 | 4.1 | 4.23 | 25.4 | 710.4 | 507.2 | 76.2 | 36.58 | 651 | 447.8 | 31.79 |
| 1×12 | 4.54 | 5.22 | 5.41 | 25.4 | 1015.2 | 659.6 | 76.2 | 36.58 | 955.8 | 600.2 | 31.79 |
| 1×18 | 4.54 | 6.35 | 6.35 | 25.4 | 1320 | 812 | 76.2 | 36.58 | 1260.6 | 752.6 | 31.79 |
| 1×24 | 4.54 | 7.82 | 7.82 | 25.4 | 1624.8 | 964.4 | 76.2 | 36.58 | 1565.4 | 905 | 31.79 |
| 1-1/4×12 | 6.89 | 8.62 | 9.33 | 31.75 | 1087.4 | 719 | 90.42 | 45.97 | 1027.2 | 658.88 | 38.1 |
| 1-1/4×18 | 6.89 | 10.4 | 10.43 | 31.75 | 1392.2 | 861.2 | 90.42 | 45.97 | 1332 | 811.28 | 38.1 |
| 1-1/4×24 | 6.89 | 12.2 | 12.25 | 31.75 | 1697 | 1023.9 | 90.42 | 45.97 | 1636.8 | 936.68 | 38.1 |
| 1-1/2×12 | 9.71 | 12.5 | 12.47 | 38.1 | 115.7 | 744.7 | 103.12 | 53.85 | 1116.1 | 735.08 | 47.75 |
| 1-1/2×18 | 9.71 | 14.1 | 14.06 | 38.1 | 1460.5 | 927.1 | 103.12 | 53.85 | 1421.4 | 887.48 | 47.75 |
| 1-1/2×24 | 9.71 | 17 | 17.01 | 38.1 | 1765.3 | 1079.5 | 103.12 | 53.85 | 1725.7 | 1039.9 | 47.75 |
| 1-3/4×18 | 12.7 | 23.8 | 44.45 | 1475.5 | 1000.3 | 117.35 | 60.45 | ||||
| 1-3/4×24 | 12.7 | 26.3 | 44.45 | 1762.3 | 1152.7 | 117.35 | 60.45 | ||||
| 2×24 | 16.78 | 38.7 | 50.8 | 1922.5 | 1312.9 | 146.05 | 68.33 | ||||
| 2-1/2×24 | 27.22 | 65.4 | 63.5 | 1996.9 | 2387.3 | 165.1 | 79.25 | ||||
| 2-3/4×24 | 34.02 | 88 | 69.85 | 2057.4 | 1447.8 | 177.8 | 82.55 | ||||

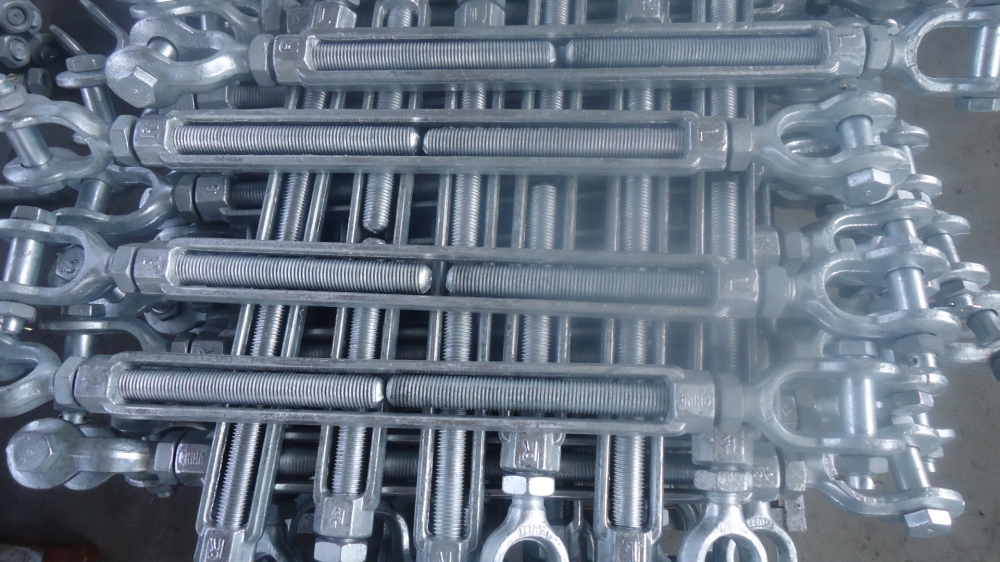

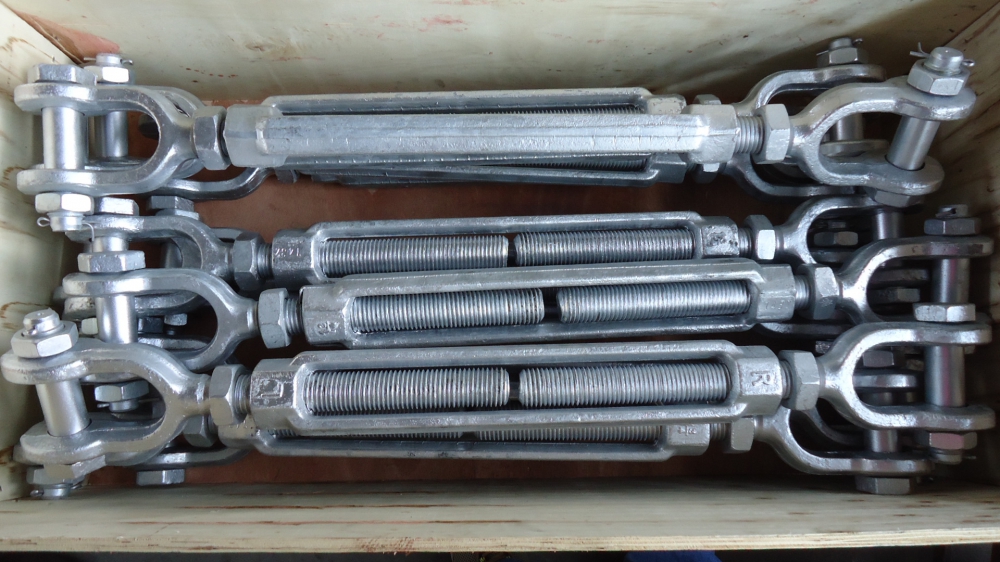

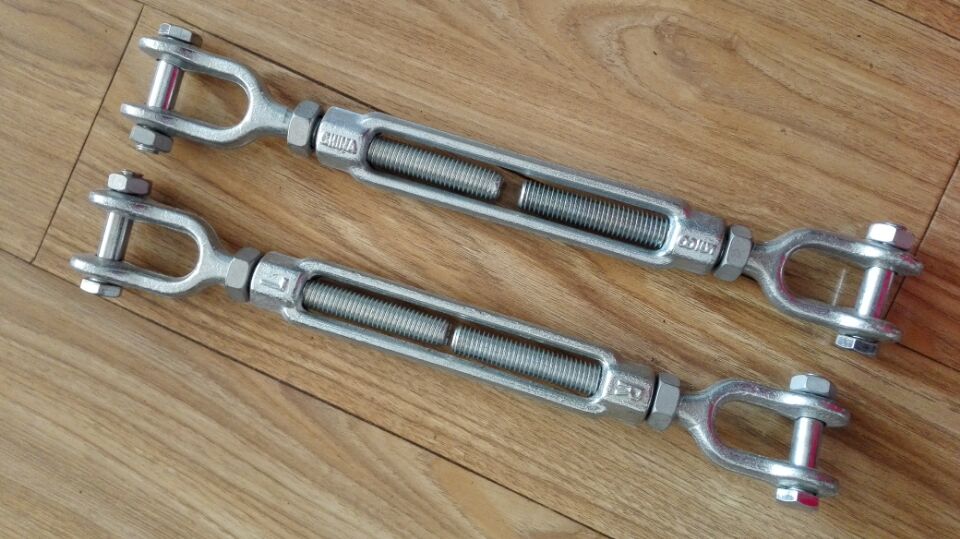

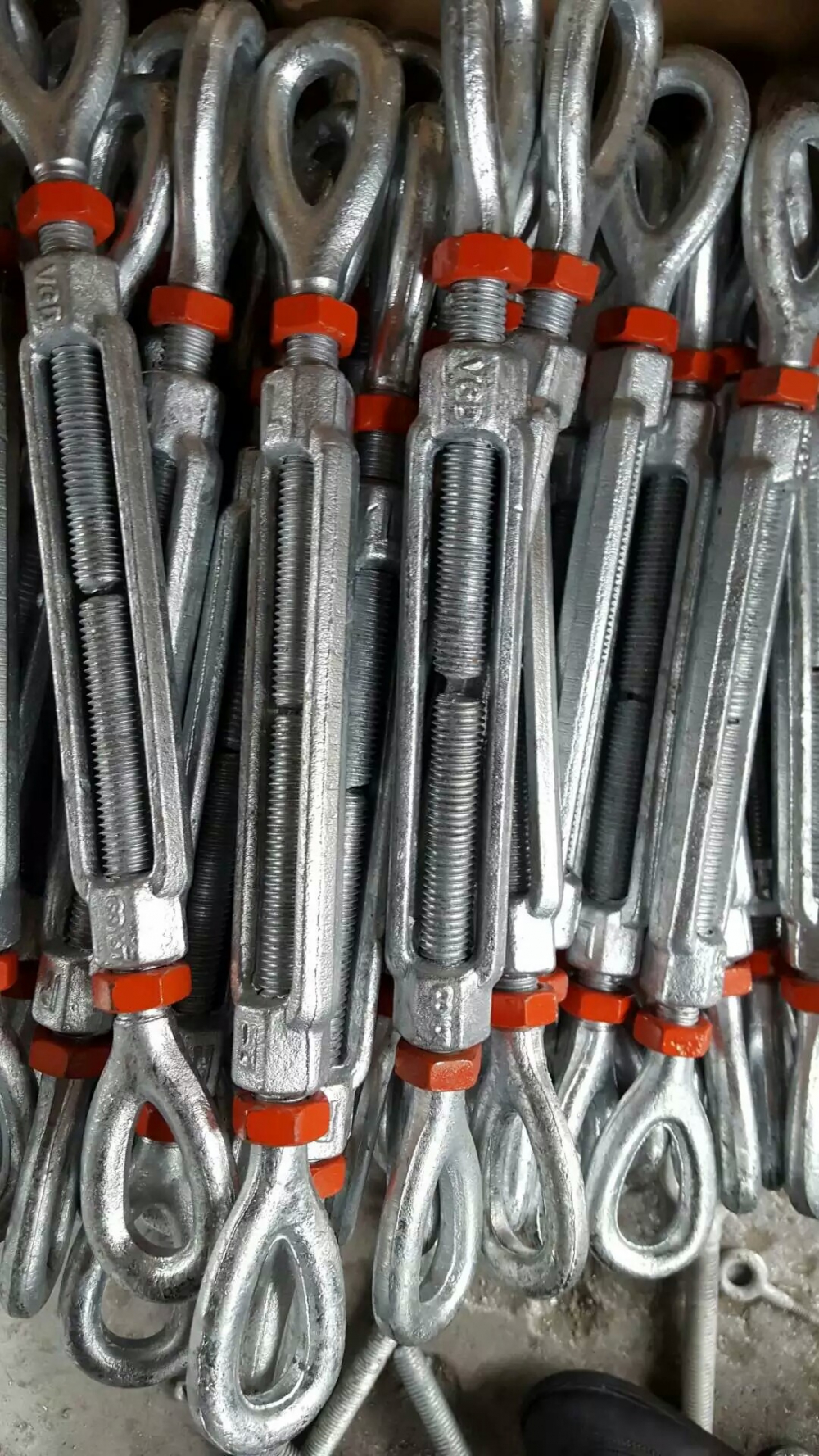

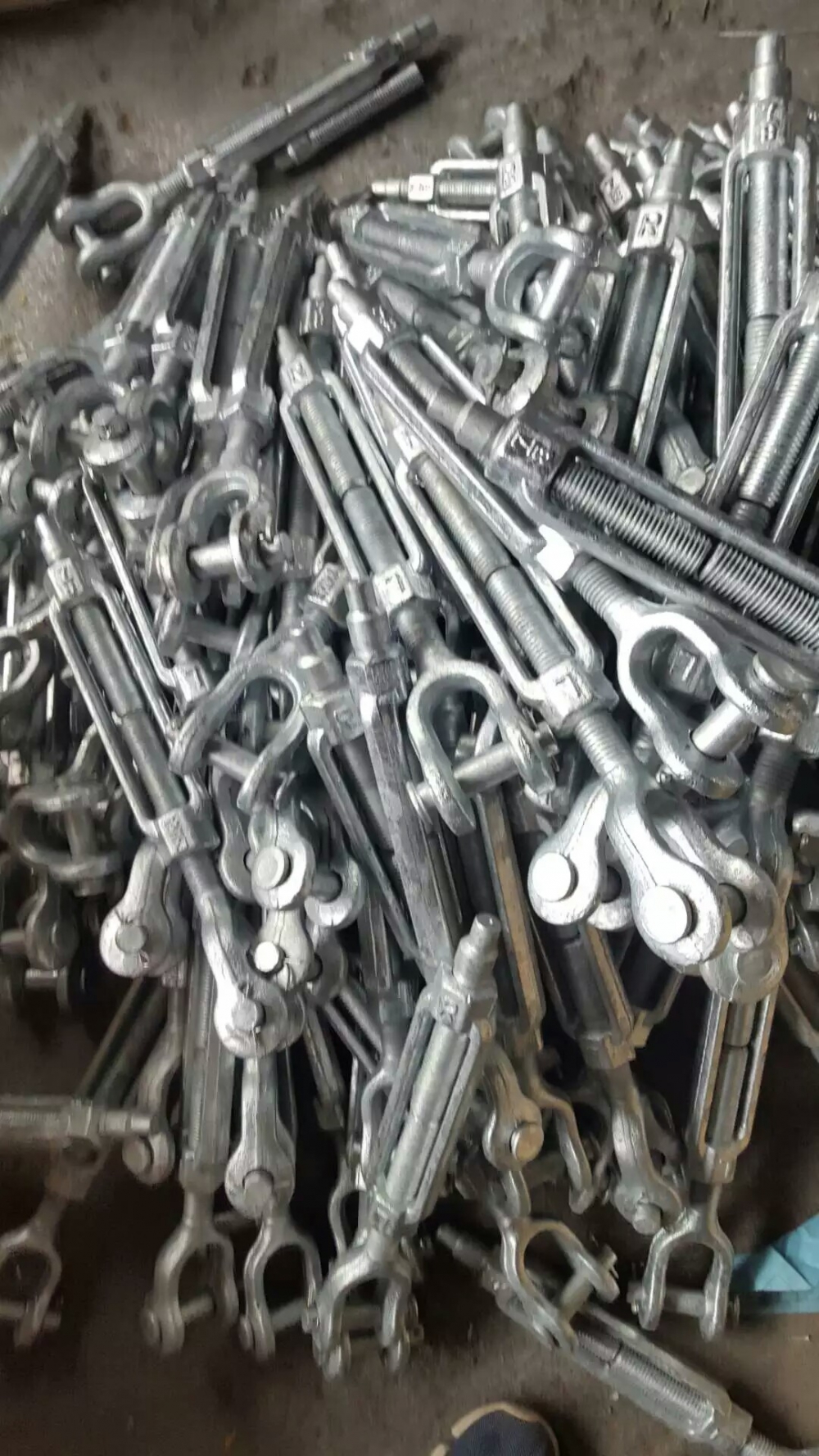

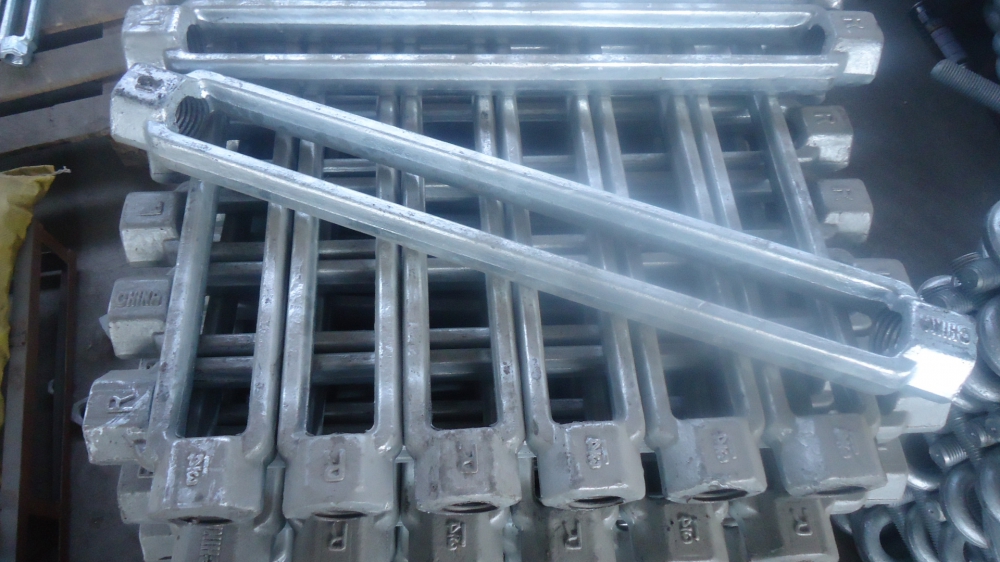

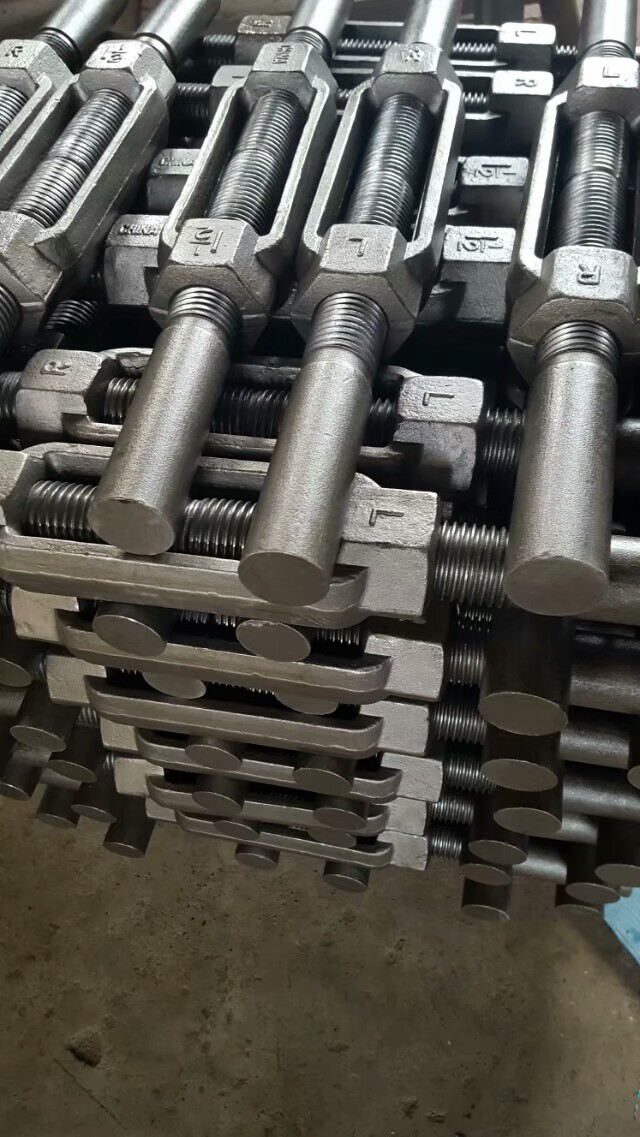

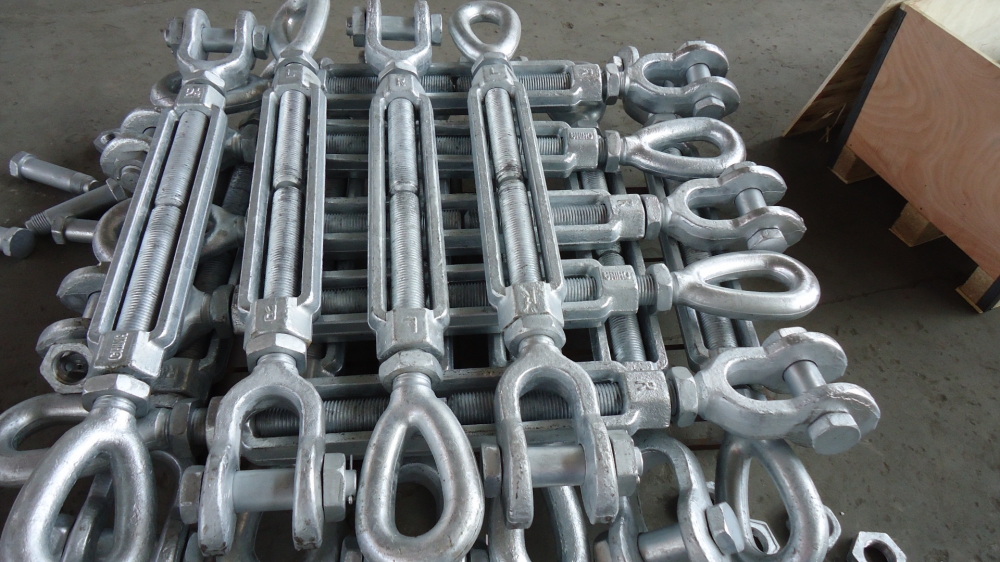

High quality hot sale Us standerd Type Hot Forged HDG Turnbuckle Jaw /Eye/Hook/Stub/toggle/thread/
What are the uses of turnbuckle?
A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.
What is a turnbuckle used for lifting?
A turnbuckle is a handy tool that makes lifting and rigging easier in the following ways: Turnbuckles are used to increase or decrease tension on a load to make minor adjustments. A turnbuckle helps to accommodate a difference in sling length, ensuring equal load distribution.
What is turnbuckle bracing?
Turnbuckle bracing (S3) creates a turnbuckle assembly, rods, and end connections.
