Basic Info.
Model NO.
aust shackle
Surface
HDG
Swl
6*Wll
Delivery Time
30days
Transport Package
Carton+Pallet
Specification
M6-M63
Trademark
SCE
Origin
Qingdao China
HS Code
7326909
Production Capacity
5000000PCS/Year
Product Description

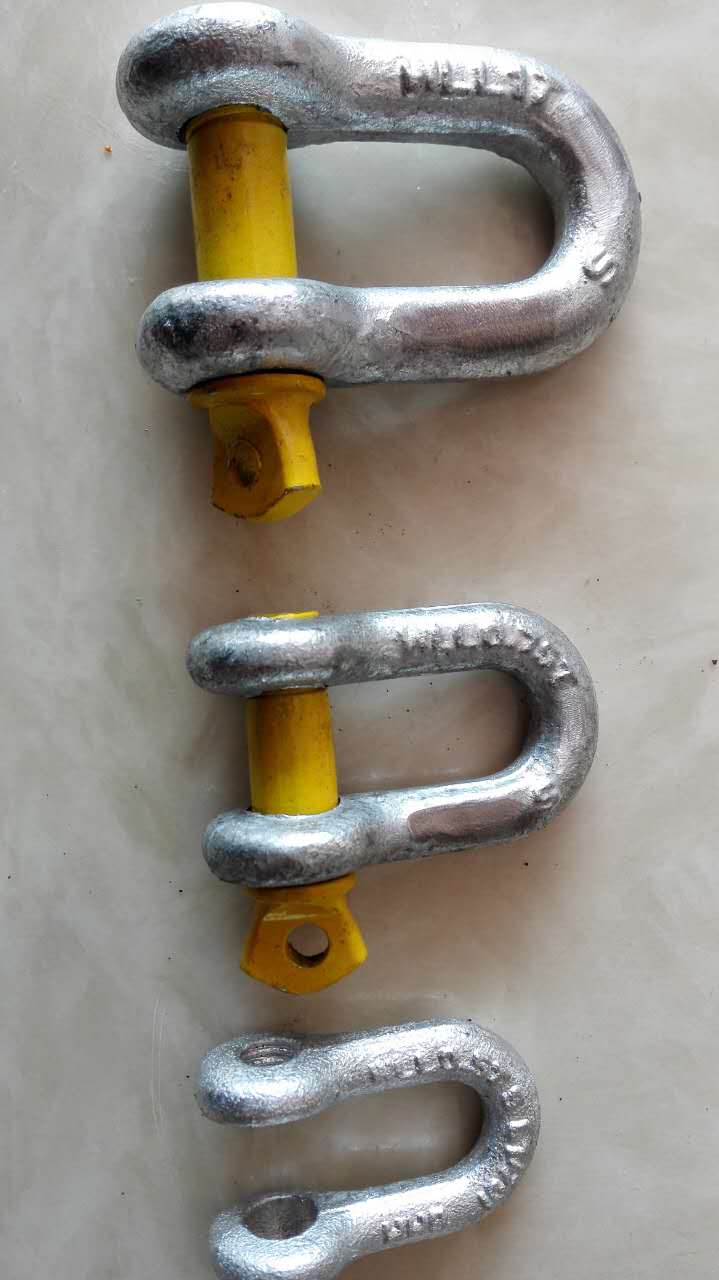

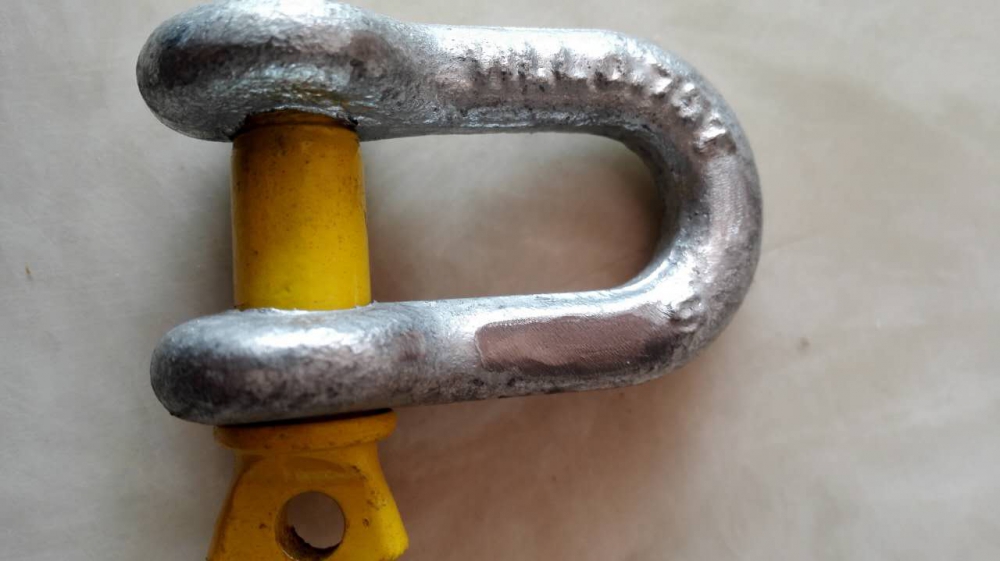

Dee anchor Shackle for Industrial with Yellow screw Pin in Grade S

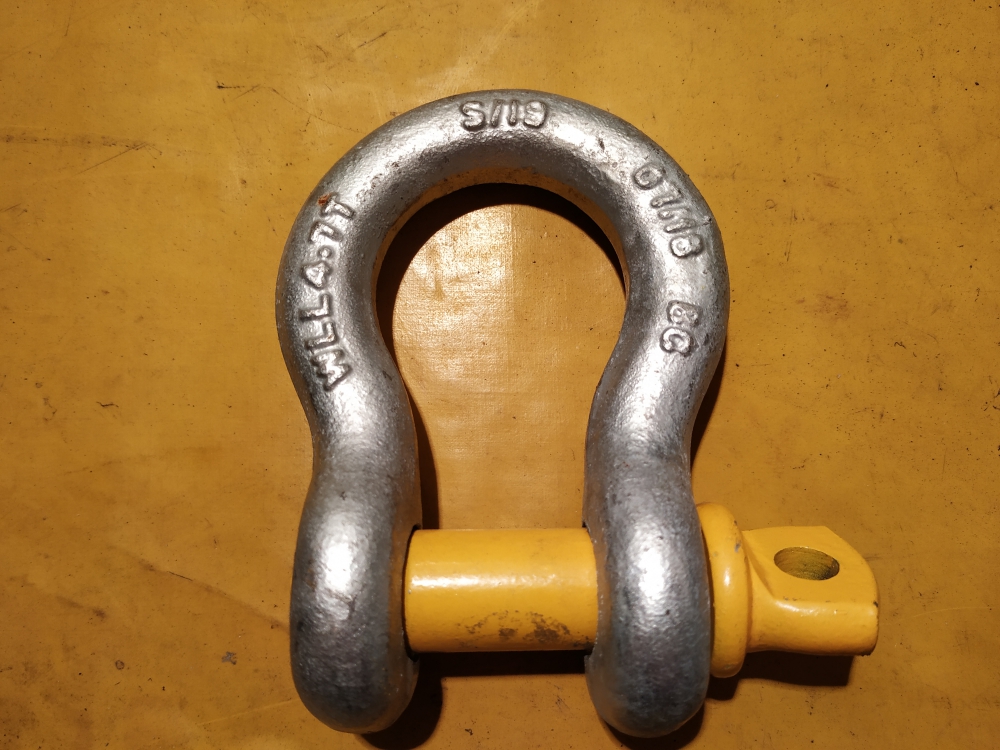

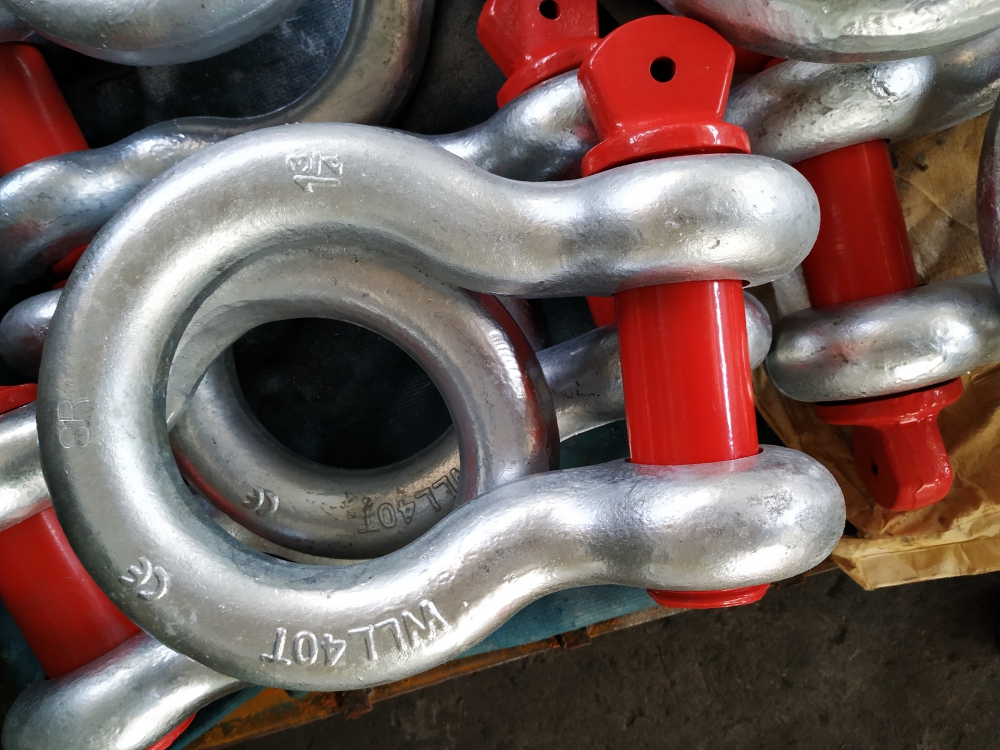

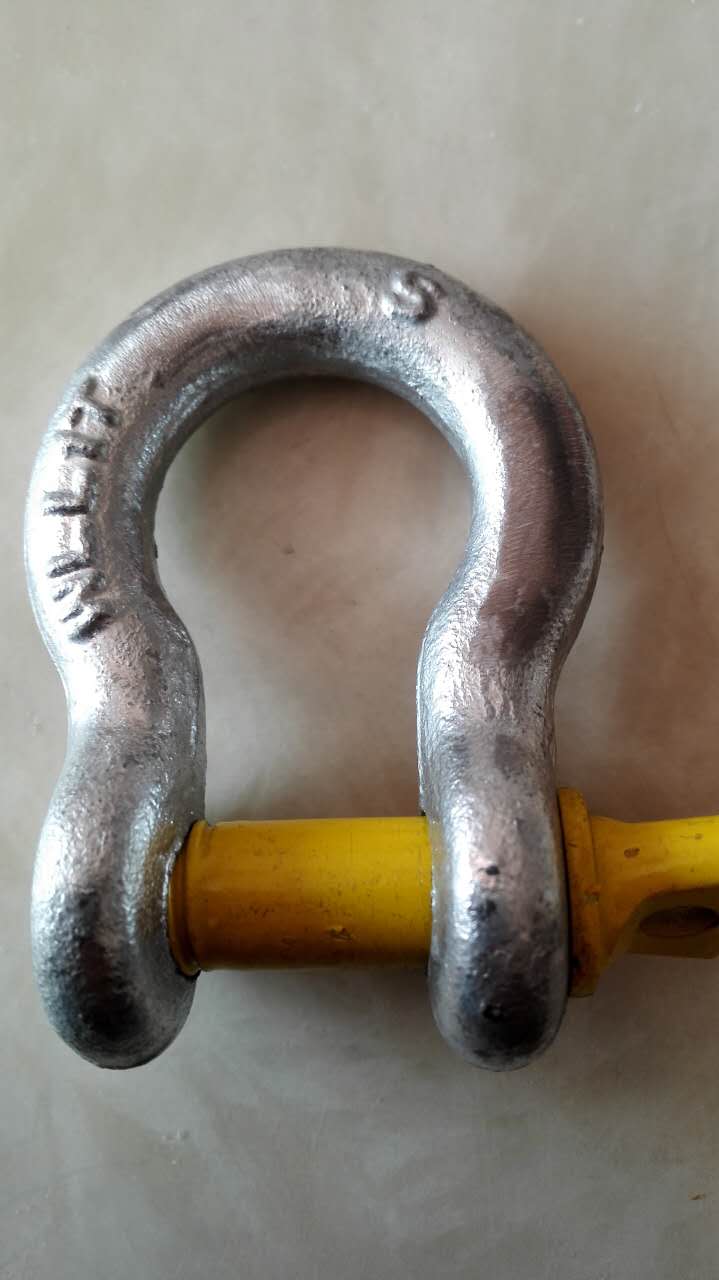

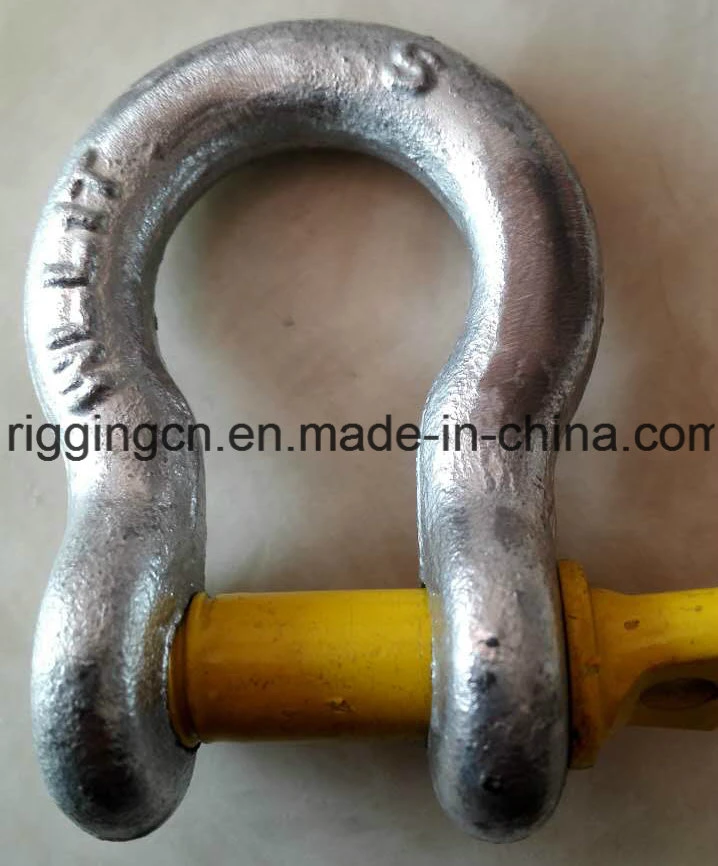

Bow Anchor Shackles are manufactured to comply with the requirements of Australian Standard
AS2741. Ideally suited for use in marine, agricultural and general industrial applications,
Bow Anchor Shackles represent the easiest and most effective way of providing a connection to chain,
wire rope and other fittings.

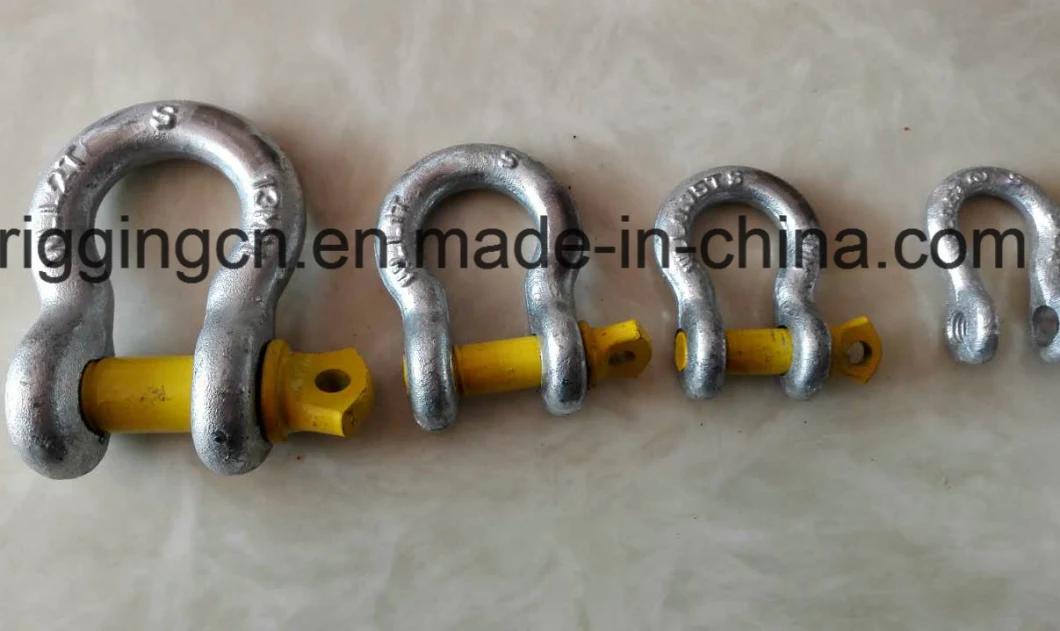

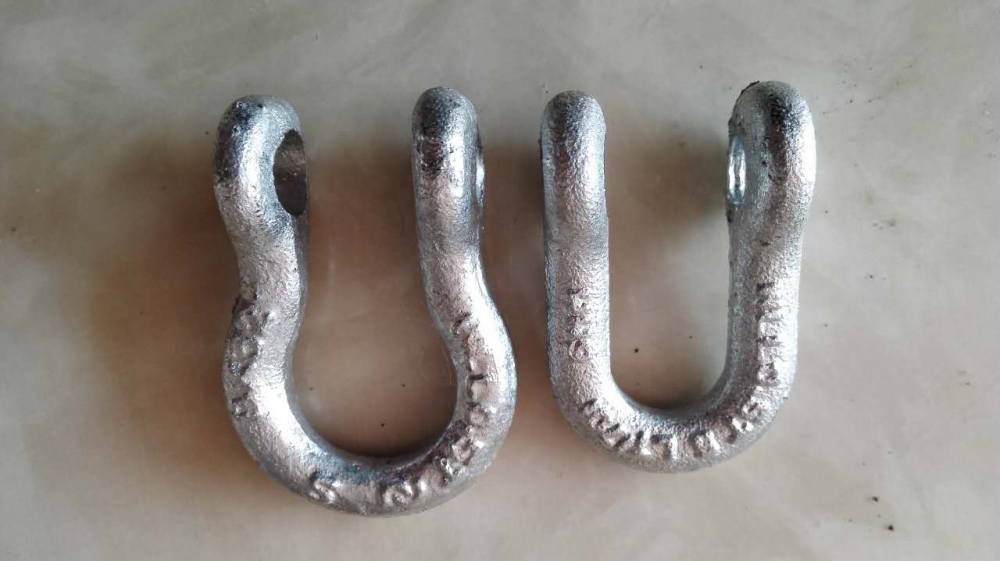

Bow Anchor Grade S Shackles are available in either Bow or Dee type in both Screw Pin and
Safety Pin designs with Grade M Shackles available in Large Dee type.
| Size | WLL | d | D | W | L | e |
| mm | ton | mm | mm | mm | mm | mm |
| 6 | 0.5 | 6 | 8 | 12 | 22 | 17 |
| 8 | 0.75 | 8 | 10 | 13 | 26 | 21 |
| 10 | 1 | 10 | 12 | 17 | 32 | 25 |
| 11 | 1.5 | 11 | 14 | 18 | 37 | 27 |
| 13 | 2 | 13 | 16 | 21 | 41 | 33 |
| 16 | 3.25 | 16 | 20 | 27 | 51 | 40 |
| 19 | 4.75 | 19 | 22 | 32 | 60 | 48 |
| 22 | 6.5 | 22 | 27 | 37 | 71 | 54 |
| 25 | 8.5 | 25 | 30 | 43 | 81 | 60 |
| 29 | 9.5 | 29 | 33 | 46 | 90 | 67 |
| 32 | 12 | 32 | 36 | 52 | 100 | 76 |
| 35 | 13.5 | 35 | 39 | 57 | 113 | 84 |
| 38 | 17 | 38 | 42 | 60 | 124 | 92 |
| 44 | 25 | 44 | 51 | 73 | 178 | 110 |
| 50 | 35 | 51 | 57 | 82 | 197 | 127 |
| 63 | 55 | 63 | 70 | 105 | 267 | 152 |
1. How do we control quality?
a) Pay attention to adaptation for manufacture process
b) Approval report for shipment
c) Third party inspection is accepted
d) Keeping quality guarantee for a long period
e) Guaranteeing quality inspection of each product before assembly and packing.
f) Comply with ISO 9001
2. Are we a factory or a trading company?
We are a factory manufacturing .Our products mainly consist of: forged riggings, hoisting pulley block, clevis hooks, eye hooks, safety hooks, swivel hooks, shackles and so on. With the passed 10 years of hard work and pursuit of better quality.
3. What are our advantages over others?
a) QINGDAO SINCERE METAL PRODUCTS COMPANY could make the clients' ideas to be actual products with support from related engineers from different fields.
b) Producing and designing forging, casting and stamping parts has made our company in a strong position in the OEM and ODM market.
c) QINGDAO SINCERE METAL PRODUCTS COMPANYbusiness is to help the overseas clients to get high quality products with fair price in China.
d) Any request from the clients would be treated carefully by our experienced staff, the quality of any order would be highly controlled by our skilled engineers.
e) QINGDAO SINCERE METAL PRODUCTS COMPANY teams would like to welcome clients from home and abroad to work for the win-win situation and reach our target: Making Business More Fun!
