Twisted Shackle with Screw Pin

Basic Info.

Model NO.

shackle

Breaking Load

2.5 Times/Four Time

Working Load

0.5t-200t

Stander

JIS Type

Body Material

Carbon Steel

Pin Materials

Alloy Steel/45steel/Carbonsteel

Processing Technic

Forged

Transport Package

Wooden Pallet +PP Bag or Wooden Case

Specification

5MM-60MM

Trademark

SCE

Origin

Qingdao China

HS Code

7326909000

Production Capacity

1000000000/Year

Product Description

All our shackles are made in China, and are supplied highly polished.
Material is carbon steel. G80 material is alloy steel .

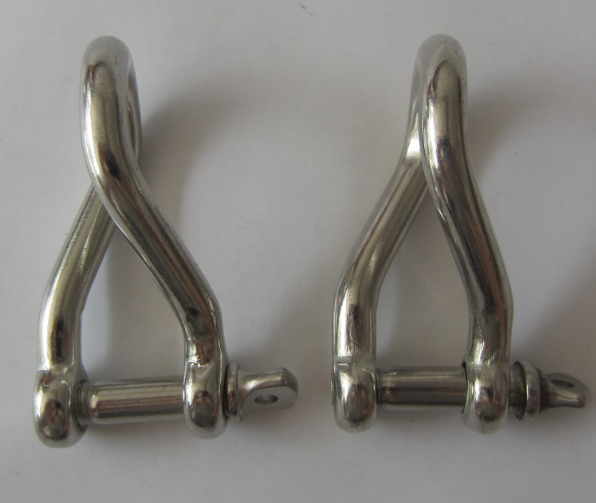

A Twist-shackle is the best option for situations where you want to achieve a 90° twist in your rigging. This shackle is perfect to use in combination with our Treeloops, or to embed your Edelrid Eddy into a pulley-system. Just like our regular shackle, the Twist-shackle has a 12mm pin and 26mm wide opening which allows a big variety of connections to be made.
Features
12mm stainless steel Twist-shackle
26mm wide mouth that fits a soft-release
Weight: 235g
Minimum Breaking Strength (MBS) 60 kN
Recommended Working Load Limit: 15kN



The shake proof shackle has both heads threaded. The pin will not fall out, but may still be unscrewed from the partially threaded second head.
The shake proof shackle pin incorporates an innovative polyurathane ring which enhances the fit of the shackle pin. Once in position the shackle pin will not vibrate loose.
The shake proof shackle incorporates the Smart-Lock pin. This pin benefits from a unique locking mechanism. When the ring is threaded into the shackle body the ring acts like a viscous liquid and binds itself to the internal threads in the shackle head.
